AIR WASHER
TYPE:ＨＡＷ SEREISE

エアーウオッシャー　HAW-5型

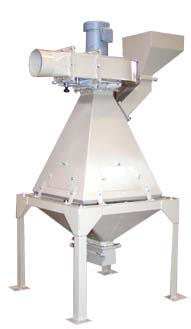

 FIGURE
☆FEATURE☆

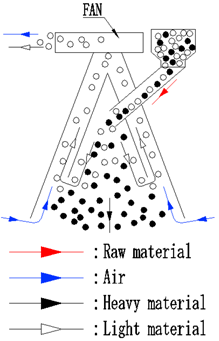

1.The air flow going to the top from the bottom is made by the fan.
In order to clean the raw materials (wash by the air),this machine is used for pre-cleanig
before feeding matrials into the tank and sorter.
☆MATERIAL☆
Paddy,Brow nrise,Wheat,Buck wheat,Millet,Maize,Soybean,Red bean,Coffee,Peanuts
,Almond,seed,Plastic pllet,Industrial waste,etc.
★SPECIFICATION★
TYPE CAPACITY
（kg/H）		 POWER
（kw）
HAW-5 1,000〜5,000 0.75
HAW-10 5,000〜10,000 1.5
HAW-15 10,000〜15,000 3.7
HAW-20 15,000〜20,000 5.5
